MARCH 0151-0124-0100 MAGNETIC DRIVE CENTRIFUGAL PUMP TE-5.5C-MD

MARCH 0151-0124-0100 MAGNETIC DRIVE CENTRIFUGAL PUMP TE-5.5C-MD

March Mfg Series 5.5 pump, TE-5.5C-MD, WEG motor, 1/3 HP, 115/230, 1 phase, 30GPM flow, 41' max head; PP, Viton, Ceramic wetted parts. Please verify motor voltage before placing order.

• • Series 5.5

    Liters per minute (LPM) and Meters (M) are given when run at 50HZ, except when the pump is equipped with Air or DC motors.

    TE-5.5C-MD 1&3 Phase Mag Drive Pump

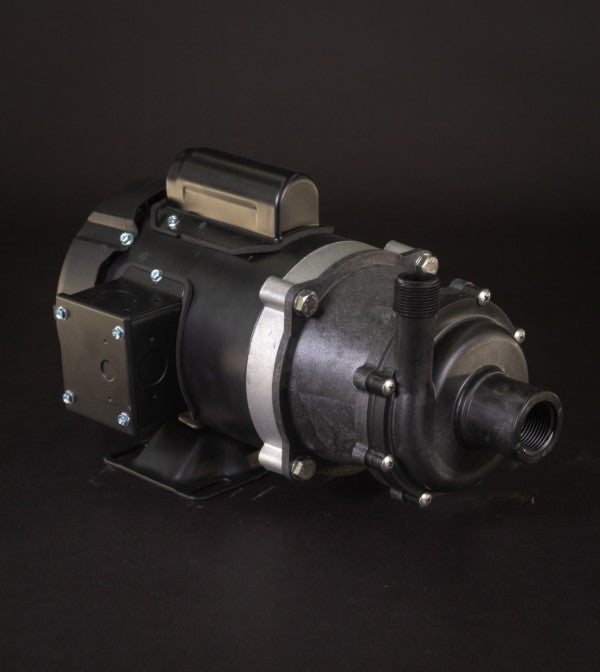

    March Pump's industrial TE-5.5C-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 30 gallons per minute at 11 feet, and its maximum head is 41 Feet (or around 18PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Viton, Ryton/Teflon/Carbon, and Ceramic. The inlet connection is a 1-inch female pipe thread, and the outlet is a 0.75-inch male pipe thread. The standard motor is a 1 Phase 115/230V or 3 Phase 230/460V 0.33 Horsepower totally enclosed fan cooled motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March TE-5.5C-MD centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March TE-5.5C-MD is suitable for your application, please contact March Pump.

    Options

    O-Ring: Viton, Teflon encapsulated Viton or Ethylene Propylene
    Front Thrust Washer: Ceramic or Hastelloy
    Shaft: Ceramic or Hastelloy
    Imp. Bushing: Carbon, Ceramic, Mica Teflon, or Ryton/Teflon/Carbon

    Perfect for Applications Including

    Applications for the TE-5.5C-MD Magnetic Drive Pump include chemical recirculation, chemical transfer, refrigerators, scrubber systems, detergent mixers, computer cooling, carbon arc furnace cooling, silver recovery systems, and marine air conditioners.

    Great for Chemicals Including

    The TE-5.5C-MD has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Nitric Acid, Phosphoric Acid, Potassium Chloride, Potassium Hydroxide, Sodium Hydroxide (Caustic Soda), Sodium Chloride, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The TE-5.5C-MD may have been modified to handle these chemicals. Please contact March Pump to review your application before using the TE-5.5C-MD for any of the above-listed chemicals.

  *** Delivery Time may Vary Depending on Stock Levels. Please contact is for lead time. ***

  Operation Manuel and Product Information
