Barmesa

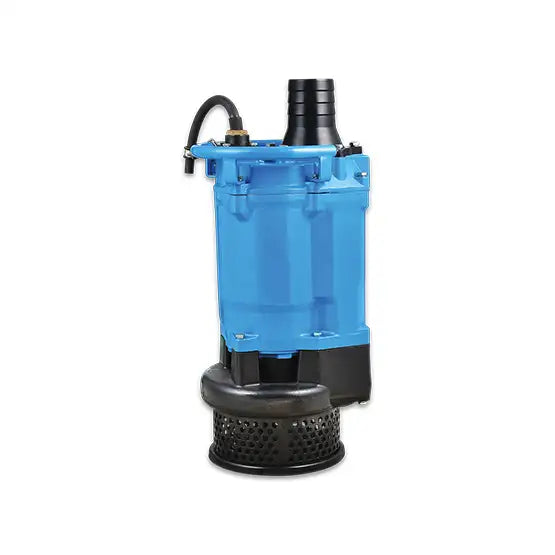

KTM Series 4" Discharge 10 HP 3 PH 60 Hz 230 or 460V 3450 RPM Dewatering Pump

KTM Series 4" Discharge 10 HP 3 PH 60 Hz 230 or 460V 3450 RPM Dewatering Pump

Regular price $5,927.00 USD
Regular price $0.00 USD Sale price $5,927.00 USD
Sale Sold out
Shipping calculated at checkout.
Voltage

Efficiently draining water from flooded areas, construction sites, and underground spaces, this dewatering pump are common in industrial, municipal, and commercial settings to maintain dry and safe environments by preventing water damage and facilitating drainage. They are crucial for dewatering basements, excavations, utility vaults, swimming pools, and ponds, playing a pivotal role in effective water management and flood prevention.

  1. 2KTM202
  2. 2KTM203 / 204
  3. 2KTM303 / 304
  4. 3KTM503 / 504
  5. 3KTM753 / 754
  6. 4KTM1003 / 1004
  7. 4KTM1503 / 1504
  8. 4KTM2004
  9. 2AHS

2KTM202 series

Key features:

  1. Discharge: 2" vertical for hose coupling. Cast iron ASTM A-48 Class 30.
  2. HP: 2
  3. RPM: 3450
  4. Impeller: semi-open type, high chrome alloy.
  5. Shaft: 420 AISI stainless steel
  6. Motor: one phase induction motor, 230 V, 60 Hz, 3450 RPM. Insulation Class F and IP68 protection class.

Data Sheet

User Manual

Product Brochure


2KTM203 / 204 series

Key features:

  1. Discharge: 2" vertical for hose coupling. Cast iron ASTM A-48 Class 30.
  2. HP: 2
  3. RPM: 3450
  4. Impeller: semi-open type, high chrome alloy.
  5. Shaft: 420 AISI stainless steel
  6. Motor: three-phase induction motor, 230 & 460 V, 60 Hz, 3450 RPM. Insulation Class F and IP68 protection class.

Data Sheet

User Manual

Product Brochure


2KTM303 / 304 series

Key features:

  1. Discharge: 2" vertical for hose coupling. Cast iron ASTM A-48 Class 30.
  2. HP: 3
  3. RPM: 3450
  4. Impeller: semi-open type, high chrome alloy.
  5. Shaft: 420 AISI stainless steel
  6. Motor: three-phase induction motor, 230 & 460 V, 60 Hz, 3450 RPM. Insulation Class F and IP68 protection class.

Data Sheet

User Manual

Product Brochure


3KTM503 / 504 series

Key features:

  1. Discharge: 3" vertical for hose coupling. Cast iron ASTM A-48 Class 30.
  2. HP: 5
  3. RPM: 3450
  4. Impeller: semi-open type, high chrome alloy.
  5. Shaft: 420 AISI stainless steel
  6. Motor: three-phase induction motor, 230 & 460 V, 60 Hz, 3450 RPM. Insulation Class F and IP68 protection class.

Data Sheet

User Manual

Product Brochure


3KTM753 / 754 series

Key features:

  1. Discharge: 3" vertical for hose coupling. Cast iron ASTM A-48 Class 30.
  2. HP: 7.5
  3. RPM: 3450
  4. Impeller: semi-open type, high chrome alloy.
  5. Shaft: 420 AISI stainless steel
  6. Motor: three-phase induction motor, 230 & 460 V, 60 Hz, 3450 RPM. Insulation Class F and IP68 protection class.

Data Sheet

User Manual

Product Brochure


4KTM1003 / 1004 series

Key features:

  1. Discharge: 4" vertical for hose coupling. Cast iron ASTM A-48 Class 30.
  2. HP: 10
  3. RPM: 3450
  4. Impeller: semi-open type, high chrome alloy.
  5. Shaft: 420 AISI stainless steel
  6. Motor: three-phase induction motor, 230 & 460 V, 60 Hz, 3450 RPM. Insulation Class F and IP68 protection class.

Data Sheet

User Manual

Product Brochure


4KTM1503 / 1504 series

Key features:

  1. Discharge: 4" vertical for hose coupling. Cast iron ASTM A-48 Class 30.
  2. HP: 15
  3. RPM: 3450
  4. Impeller: semi-open type, high chrome alloy.
  5. Shaft: 420 AISI stainless steel
  6. Motor: three-phase induction motor, 230 & 460 V, 60 Hz, 3450 RPM. Insulation Class F and IP68 protection class.

Data Sheet

User Manual

Product Brochure


4KTM2004 series

Key features:

  1. Discharge: 4" vertical for hose coupling. Cast iron ASTM A-48 Class 30.
  2. HP: 20
  3. RPM: 3450
  4. Impeller: semi-open type, high chrome alloy.
  5. Shaft: 420 AISI stainless steel
  6. Motor: three-phase induction motor, 230 & 460 V, 60 Hz, 3450 RPM. Insulation Class F and IP68 protection class.

Data Sheet

User Manual

Product Brochure


2AHS series

Key features:

  1. Discharge: 2" NPT, vertical.
  2. Spherical solids handling: 1/4"
  3. HP: 0.5, 1 & 2
  4. RPM: 3450
  5. Impeller: 8 vane, open, semi-vortex. Hytrel® thermoplastic elastomer.
  6. Shaft: 410 series stainless steel
  7. Motor: dry type submersible motor, 1 & 3 phase, 115 & 230 V, 60 Hz, 3500 RPM. For continuous duty, with thermal protector IP68 in winding, insulation Class B.

Data Sheet

User Manual

Product Brochure


View full details
