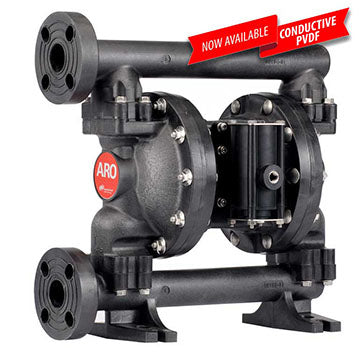

ARO PD10E-FNS-KTL-A DOUBLE DIAPHRAGM PUMP, EXP SERIES

ARO PD10E-FNS-KTL-A DOUBLE DIAPHRAGM PUMP, EXP SERIES

• • What is a double diaphragm pump?

    A double diaphragm pump is a positive displacement pump that uses two sets of flexible membranes to pump fluids and a series of check valves to ensure fluid can only travel in one direction through the chamber. Pump cycling will begin as air pressure is applied. Air-operated diaphragm pumps utilize a pressure differential in the air chambers to alternately create suction in the fluid chambers.

    • Range: Expert
    • Diaphragm: Long Life PTFE
    • Hardware: Stainless Steel
    • Porting: End Flanged
    • Seat: PVDF
    • Size: 1"
    • Wet Side: PVDF
    • Valve: PTFE

  •


  Specifications:

  BRAND	ARO
  PRODUCT TYPE	Pump
  PRODUCT SERIES	EXP Series
  MATERIAL - DIAPHRAGM	Long-Life PTFE
  APPLICATION	Air Operated Pump
  INLET/OUTLET CONNECTION TYPE	ANSI / DIN Flange
  MATERIAL - HOUSING	Aluminum
  SOLIDS HANDLING	1/8 in
  MATERIAL - BALLS	PTFE
  MATERIAL - SEATS	PVFD
  MAX AIR INLET PRESSURE	120 psi (8.3 bar)
  MAX FLOW	53 gpm (200.6 lpm)
  MAX FLUID PRESSURE	120 psi (8.3 bar)
  MAX TEMPERATURE	200°F (93°C)
  NOISE LEVEL	85.0 dB(A)
  NOTES	1" ANSI Inlet/Discharge EXP Series **non-cancellable/non-returnable**
  DISPLACEMENT	Positive Displacement
